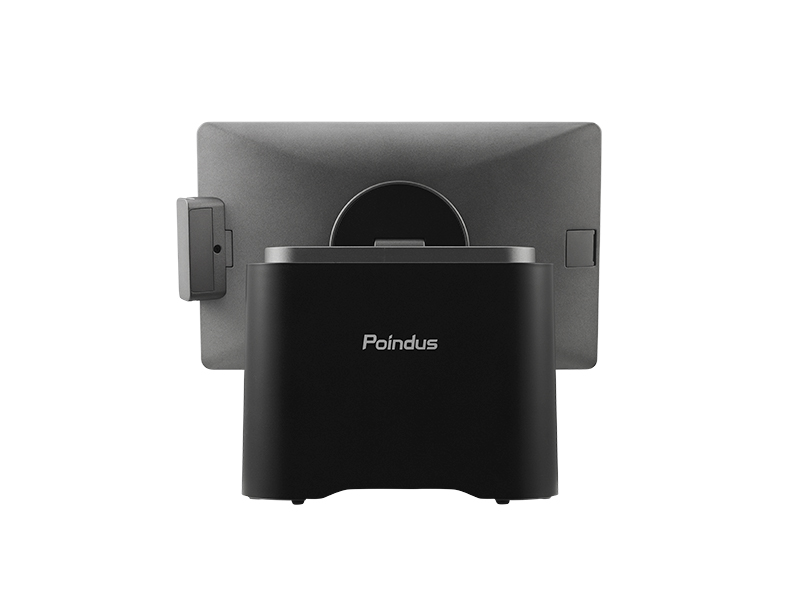

VariPOS 240 (PE21) |
Main Board |
Processor |
- Intel® Skylake Core™ i5-6500TE Processor
- Intel® Skylake Core™ i3-6100TE Processor
- Intel® Skylake Celeron® G3900TE Processor
|
Chipset |
Intel® Q170 |
System Memory |
1 x SO-DIMM DDR4 slot, 4GB RAM as standard. Max. memory support up to 16GB.
|
TPM |
Intel F/W
|
Intel ATM |
N/A / YES (i5 w/Q170 chipset)
|
Display & Touch |
LCD Size |
14″ 16:9 TFT LCD (LED backlight)
|
Brightness |
200nits |
Touch Technology |
True Flat Projected Capacitive Technology |
Resolution |
1366 x 768 (16:9) |
Storage |
HDD/SSD |
1 x SATA III 2.5” / 2 x SATA III 2.5” (Option) |
RAID Function |
N/A / YES. Support RAID 0/1 / (Q170 chipset) |
I/O & Expansion |
DC Input |
1 x Mini Din 4P (DC +19V only) |
Cash Drawer |
1 x RJ-11 (Support DC +12V or +24V (default)) port supports 2 cash drawers |
LAN port |
1 x Gigabit Ethernet by RJ-45 |
USB port |
4 x USB 3.0 / 2 x USB 2.0 |
Powered USB port |
2 x DC+12v Powered USB, max. 1.5A / 1 x DC+24v Powered USB, max. 1.85A |
COM port |
3 x RS-232(COM1/2:DB-9, COM3:RJ-48) w/DC 0V/+5V/+12V, Selectable by BIOS (default setting is DC 0V)
|
Bus Expansion |
1 x Mini-PCI-E Slot |
VGA port |
1 x DB-15 w/DC+12V. Power enables by BIOS setting (default is Disable) |
Power Switch |
1 x power on / off switch button |
Speaker |
HD Audio, 2W Speaker x 2 |
OS Support |
- Windows 10
- Windows 8.1
- Windows 7
- POSready 7
|
Power Adapter |
External adapter, DC Model : Voltage:+19VDC, Std. 90watt. (Powered USB will use 180watt adaptor) |
Compliance |
Certifications |
CE, FCC, LVD, RoHS |
Protection |
IP 66 on front panel |
Material |
Main Unit: Die-Cast Aluminum |
Dimension( Wx H x D ) |
357.7 x 325.03 x 196.55 mm |
Environmental |
Operating Condition |
0ºC ~ 40ºC, 10% ~ 90% RH, non-condensing |
Storage Condition |
-20ºC ~ 60ºC, 10% ~ 90% RH, non-condensing |
Optional Accessories |
2nd Display |
10.1 ” Resolution 1280 x 800 (16:10 wide screen) USB Type, White color |
VESA Bracket |
Supports Display M Series |
LCM |
2×20 LCM, USB Type, White color |
MSR |
ISO 3-Tracks Slim MSR USB Type |
iButton |
Dallas Key Reader,USB Type |
Scanner |
2D scanner, USB Type |
Finger Print |
DigitalPersona U.are.U 4500 Module, USB Type |
RFID |
13.56Mhz USB Type |
